Description

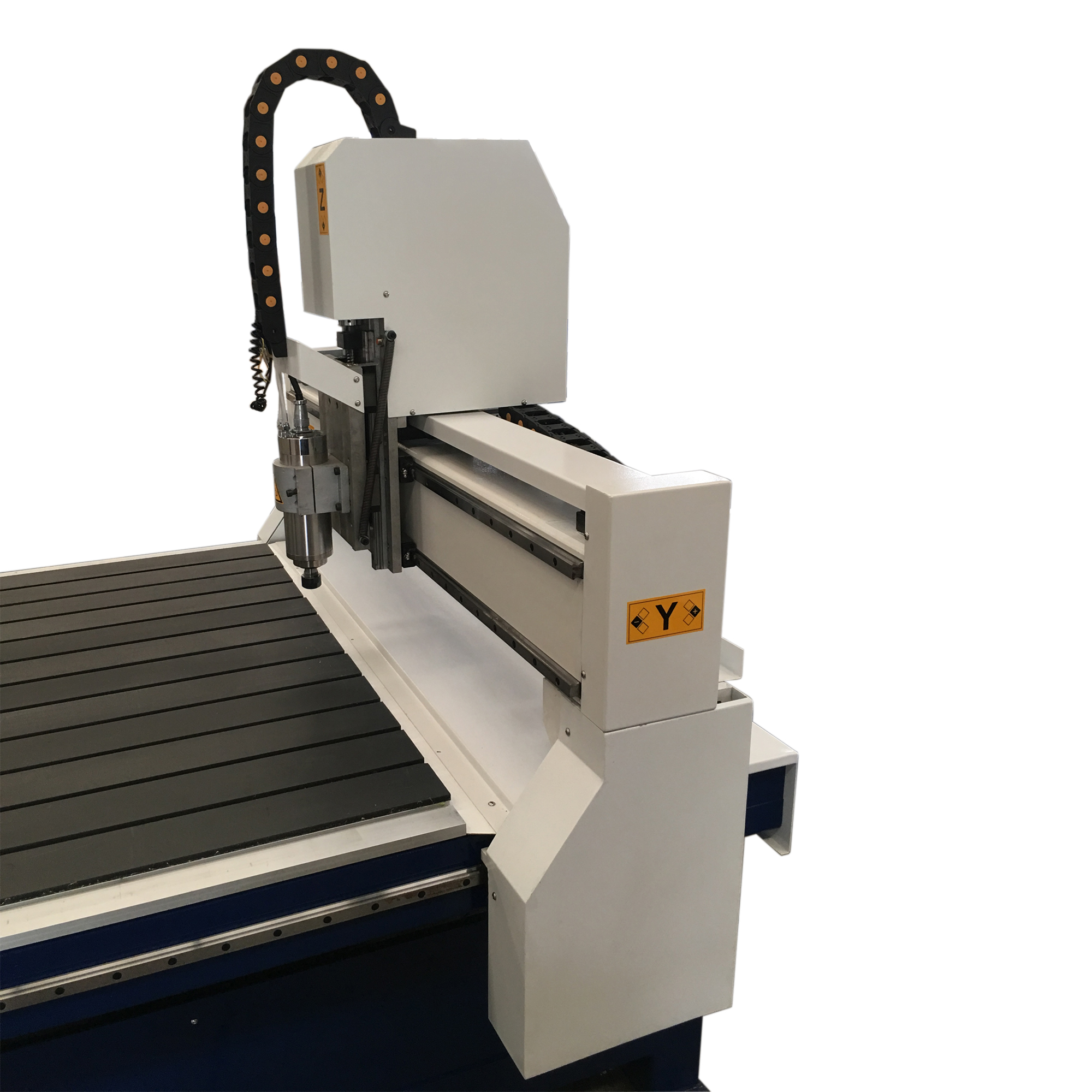

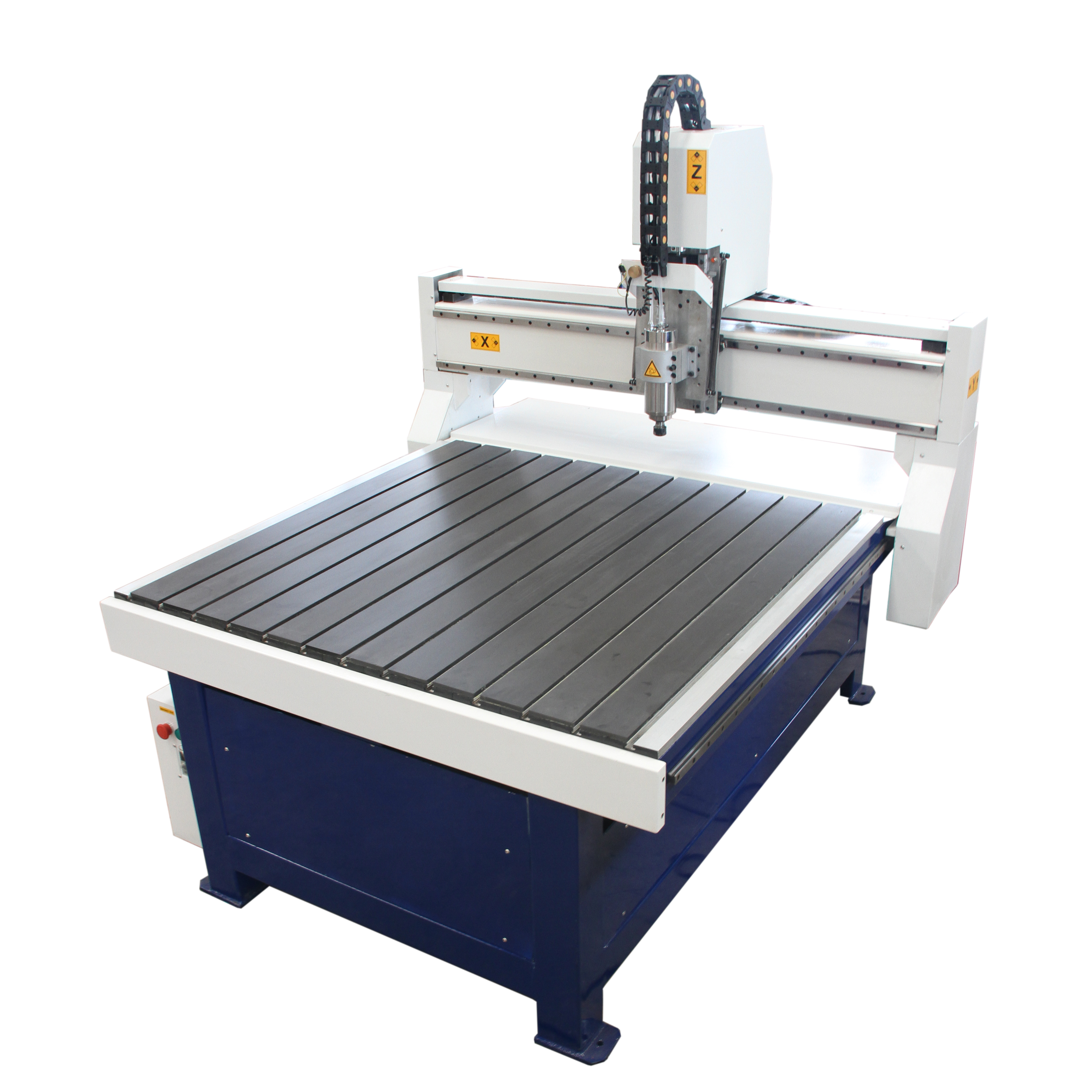

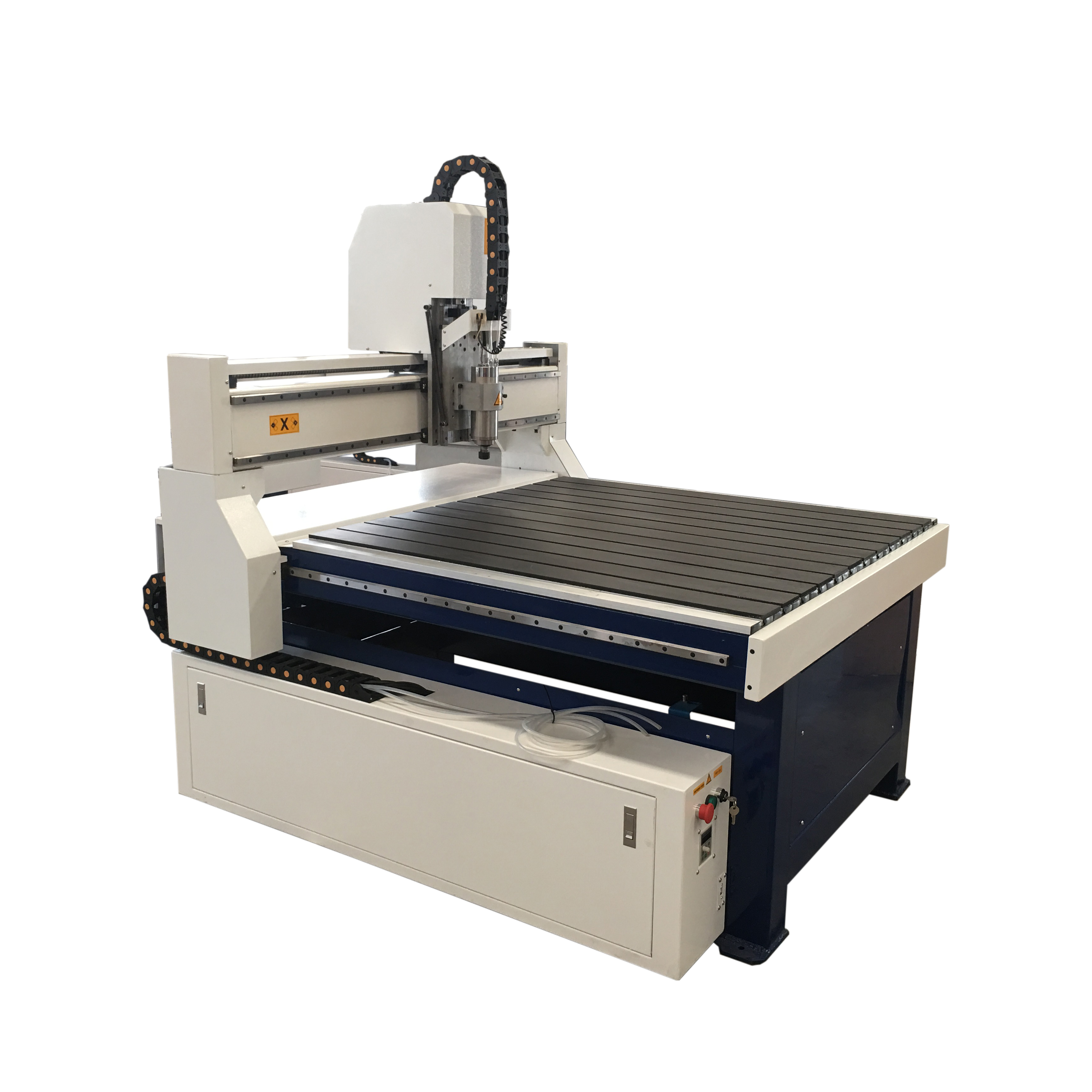

Our 1200 mm x 1200 mm CNC Servo router is an efficient and affordable 3-axis CNC router low price and high quality, it cuts very well and has excellent finishing. It comes with easy to use Syntec operating system, high quality square linear guide rails, 3-axis ball screws, standard 120 mm travel on z-axis. The specially designed aluminum T-slot table with PVC pads can securely hold down any pieces you’re working on. In addition, the 2.2 kw spindle is liquid-cooled, so you can machine long hours in production environments. You’ll find plenty of room for creativity — anything you can draw, it can cut. This machine is an exact high performance machine for small workshops.
Features
- Heavy duty steel structure provides high stability and accuracy
- 1200 mm x 1200 mm working area
- Aluminum T-slot table with PVC pads securely hold down any work pieces
- 2.2 kw water cooled spindle for long hours machining
- Easy-to-use Syntec operating system
- High quality square linear guide-rails
- Comes with 3-axis ball screws and stepper motors as standard
- 120 mm travel on Z-axis (250 mm travel is available)
- servo motor
Specifications
- Working area: 1200 mm x1200 mm
- Travel on Z-axis: 120 mm
- Whole structure: steel structure
- Table type: Aluminum T-slot table with PVC pads

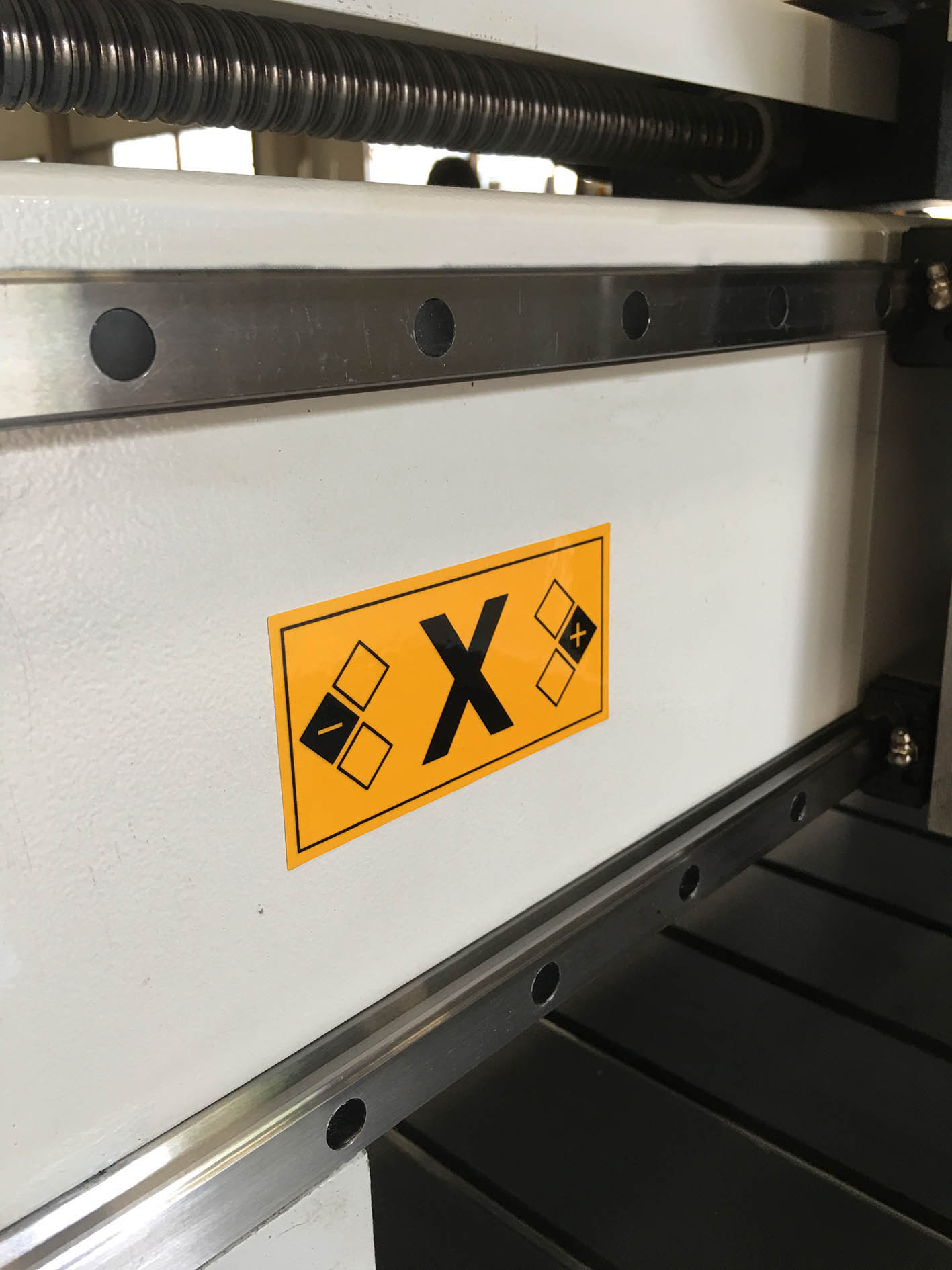

- Guide rail: Square linear guide rails

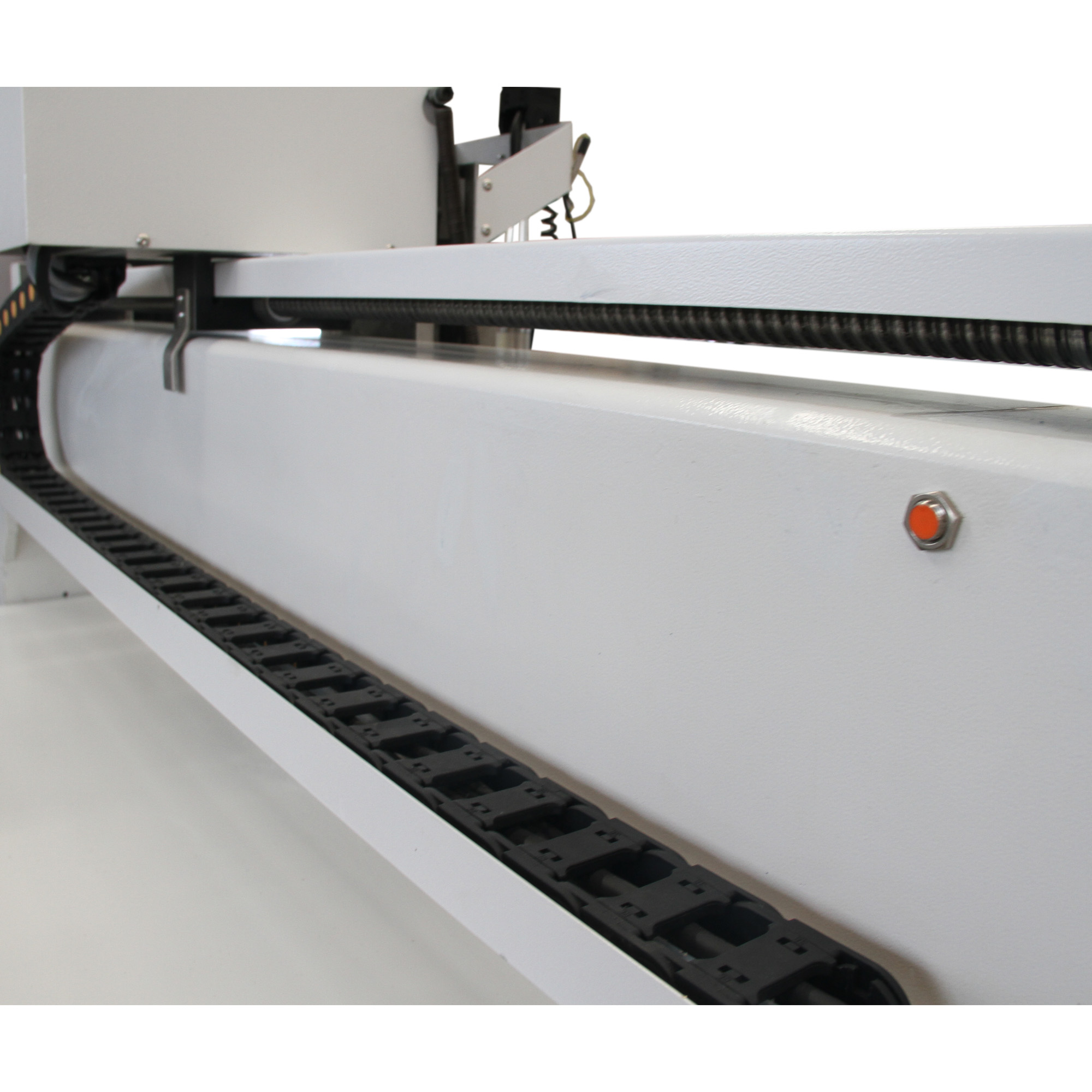

- Driving method: Ball-screws on X/Y/Z

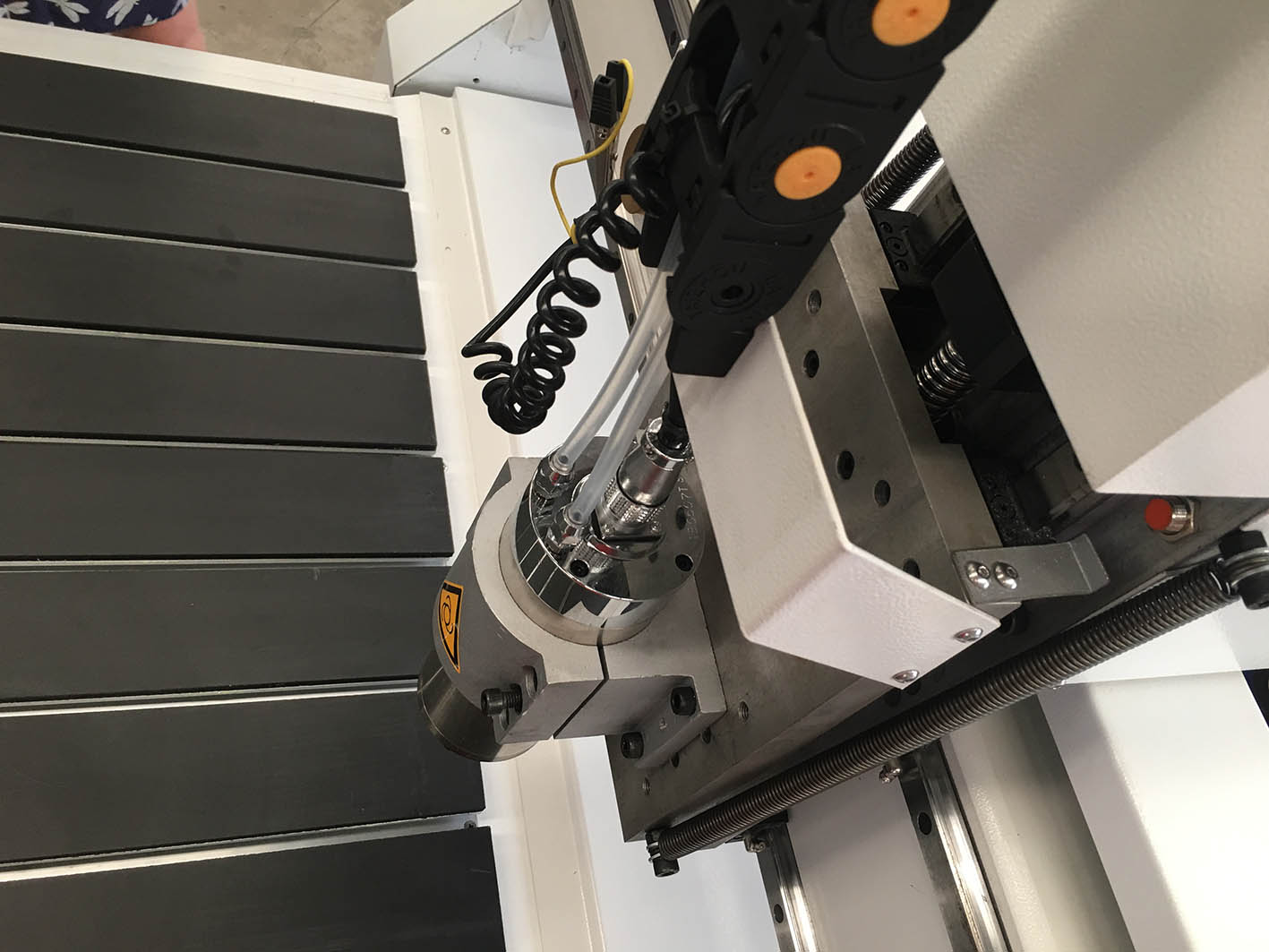

- Spindle: 2.2 kw water cooling spindle
- Spindle speed: 24000 rpm
- Collet size: ER20
- Control system: Syntec
- Working accuracy: 0.05 mm
- Repetitive positioning accuracy: 0.01 mm
- Rapid travel speed: 10m/min
- Max. working speed: 10m/min
- Working voltage: 220v. 50hz, single phase
- Environment temperature: 0 – 45 ℃
- Environment humidity： 30% – 75% No coagulate water
- Approx. machine weight: 600kgs
- Machine dimensions: 1800 mm x1600 mm x1900 mm
|
The Spare Parts |
|||||
|
Number |
Name |
Mold |
Quantity |
Unit |
Notes |
|
1 |
Tool Box |
|
1 |
Piece |
|
|
2 |
Wood Cutters |
Various |
4 |
Set |
|
|
3 |
Cutters Clamp |
Er20 |
2 |
Piece |
|
|
4 |
Cutter collet |
Dia3/4/6 |
3 |
Piece |
|
|
5 |
Hexagonal Wrench |
M6 |
1 |
Piece |
|
|
6 |
Table Clamp |
|
6 |
Set |
|
|
7 |
Dust Cover |
|
1 |
Piece |
|
|
8 |
Open-End Wrench |
20-25 ER20 |
2 |
Set |
|
|
9 |
Water Pump |
160E |
1 |
Set |
|
