Description

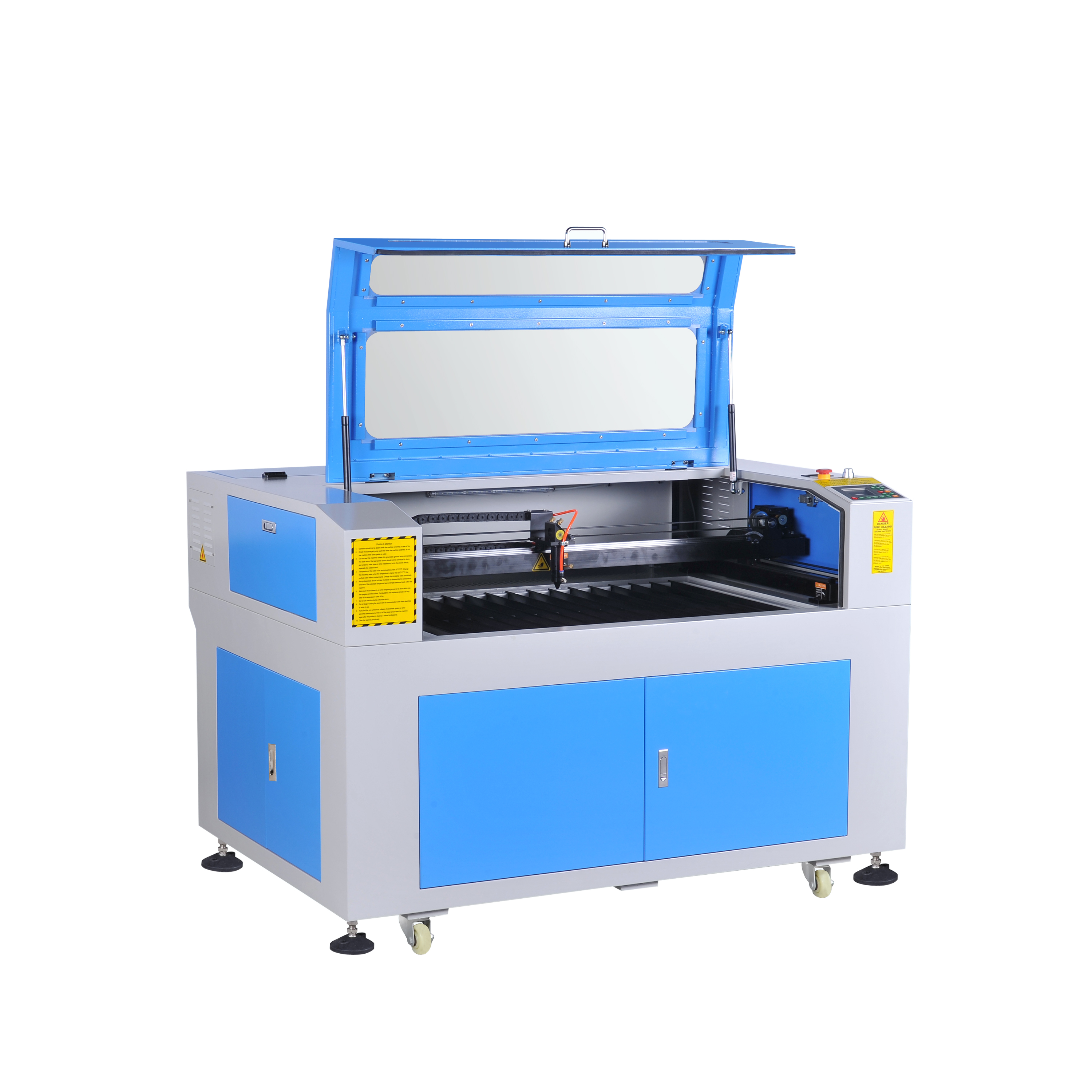

Ross 6090 Laser
Description
Our 6090 CO2 laser cutting machine is able to cut and engrave all kinds of non-metal materials : paper, wood, bamboo, acrylic, MDF, plywood, leather, glass.
6090 is widely used in manufacturing crafting gifts, advertisement decoration, clothes, furniture, packaging and many other industries. It’s easy to operate via USB interface.The 6090 can engrave at fast speed with high precision. What’s more, our 6090 comes with 80W CO2 laser tube, electronic worktable lifting system, knife table, CW5000 chiller, high quality square linear rails…
Features
- Software supports Windows system that is compatible with Artcut, Corel Draw, Photoshop, Autocad.
- Front &Rear entrance for longer materials to pass through
- Safety magnetic switches provide Max. security during working

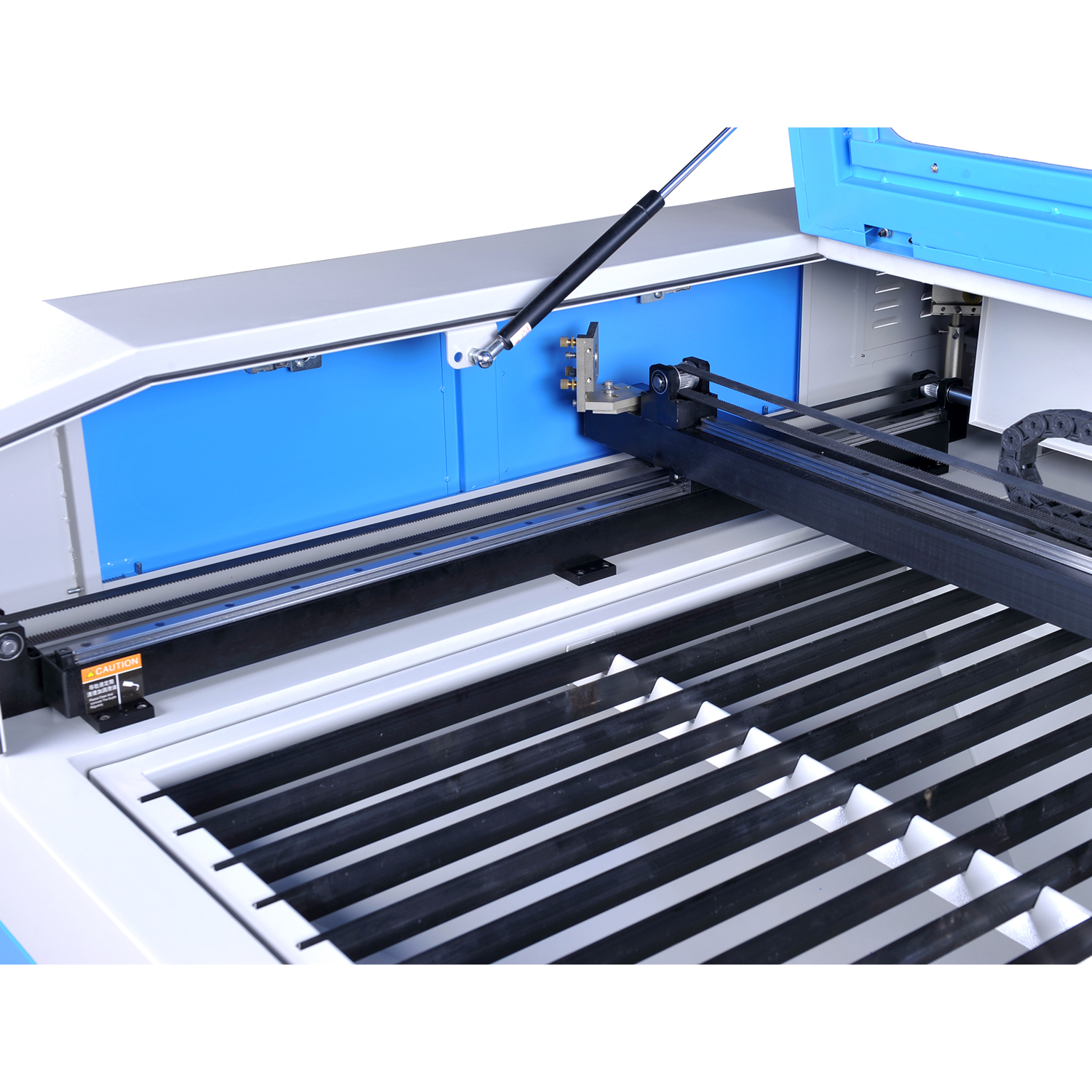

- Imported square linear guide rails provide high durability, stability and accuracy

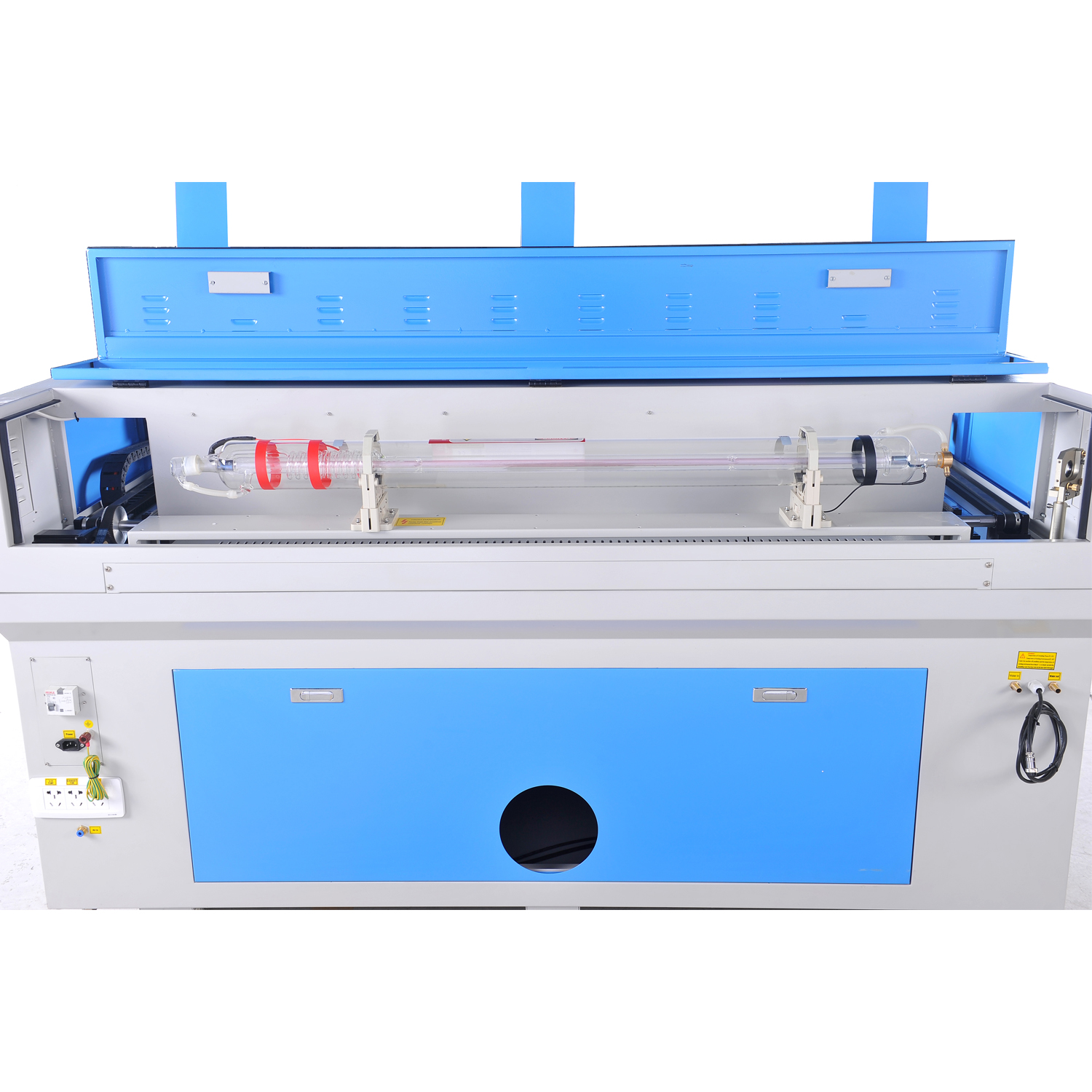

- 80W RECI CO2 laser tube with water cooling provides up to 8,000 hours lifetime
- All X/Y/Z axis with dual micro safety switches provide Max. protection of the components
- LCD control panel for convenient operation
- Driving system controlled by stepper motors
- Built-in mobile wheels for easy of moving in workshop
- Waste collect device is easy to take the samples and saw materials

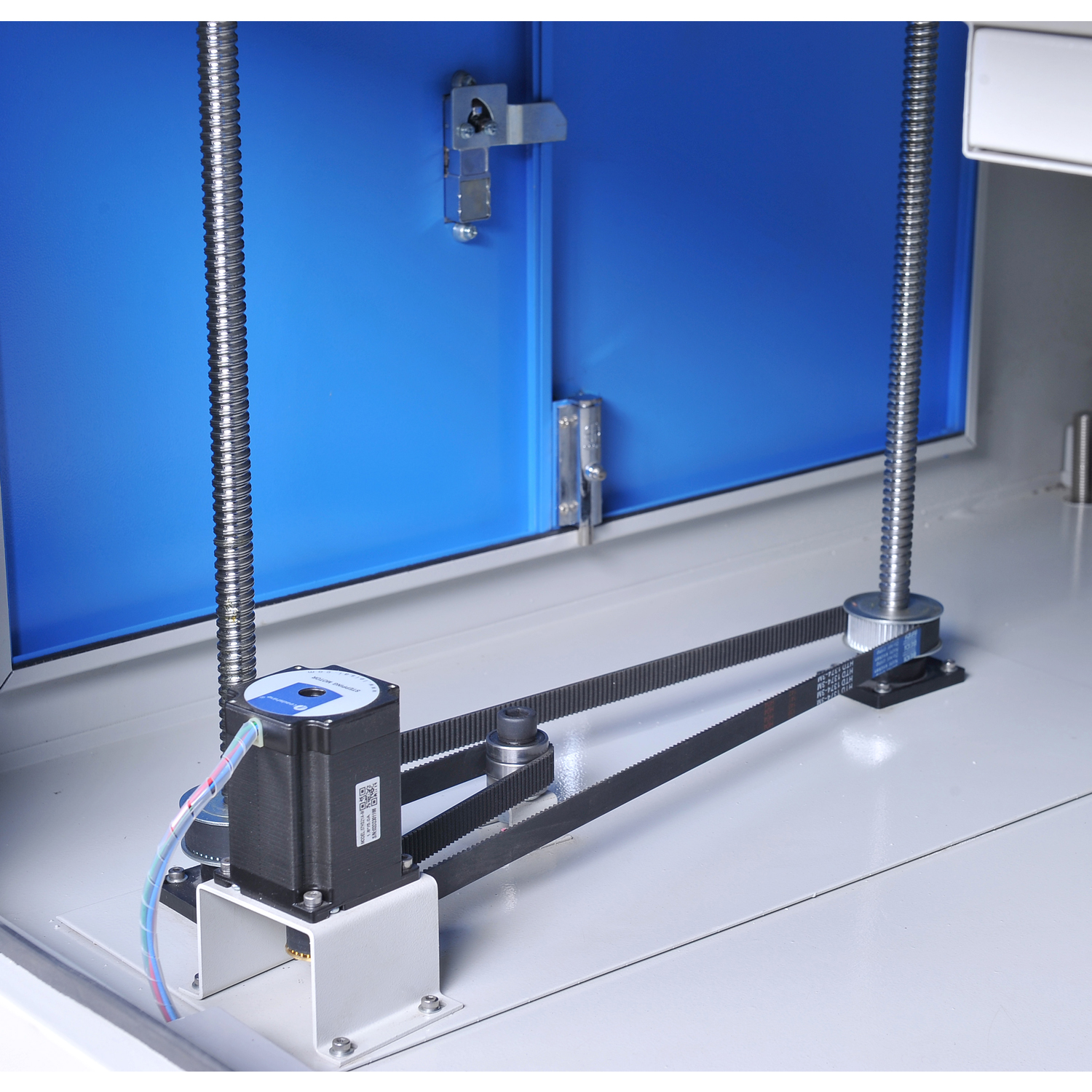

- Electronic worktable lifting system is driven by ball-screws and stepper motors
- CW5000 chiller, air compressor and blower extractor are available
- 24 hours running test before shipment
Applications Materials: Acrylic, wood, plywood, bamboo, marble, cloth, plexiglass, crystal, plastic, leather, paper, rubber, ceramic, glass and other non-metal materials
Industries: Advertisement, arts and crafts, gifts, training and education, leather, toys, models, decoration, logo and template making, clothing…
Specifications - Working area: 600x900mm
- Laser power: 80W
- Laser type: CO2 sealed laser tube, water cooling
- Engraving speed: 1-1000mm/s
- Cutting speed: 0-600mm/s
Reset position accuracy: below 0.01mm - Power supply: 220v/1ph
- Min. forming size of character: 1mmx1mm
- Software support: Artcut &Photoshop (conversion output), Coreldraw &AutoCAD (direct output)
- Working environment: Humidity 5%-95%, Temperature 0-45°C
- Warranty: 12 months (Consumable parts not included)
- Machine weight: 230kgs
- Standard equipment: Knife worktable, 80W RECI Laser tube with cooling, blower extractor, CW5000 chiller, electronic table lifting system, Taiwanese square linear rail guides, stepper motors
